SC711 is a prototyping module designed for the RCBus.
- SC711 – Assembly guide
- SC711 – Compatibility
- SC711 – Parts list
- SC711 – Printed circuit board
- SC711 – User guide
- SC700 series information
- SC700 series support
Downloads
- SC711, v1.0, Kit contents sheet (PDF)
- SC711, v1.0, PCB design files (OSHWLab)
- SC711, v1.0, Gerber files (ZIP)
Errata
Most of the pads on this prototyping board are connected in groups of three. However, PCB v1.0.0 has one pad unintentionally isolated from the other pads in its group. This pad is in the third column from the lower mounting hole.
Suppliers
| Kits | Website | From | Currency |
| Small Computers Direct | SCDirect | UK | GBP |
| PCBs | Website | From | Currency |
| Small Computers Direct | SCDirect | UK | GBP |
| Assembled and Tested | Website | From | Currency |
| Not available | |||
| Components | |||
| See parts list |
Parts List
| Reference | Qty | Component |
| PCB | 1 | SC711, v1.0, PCB |
| P1 | 1 | Header, male, 2 row x 40 pin, angled |
| Screw (for spacer) | 2 | Machine screw, 6mm, M3 |
| Spacer | 2 | Spacer, 10mm, M3, nylon |
Printed Circuit Board
PCB dimensions: 4.0″ x 4.0″ (101.6mm x 101.6mm) = RCBus 80-pin “large” size module
User Guide

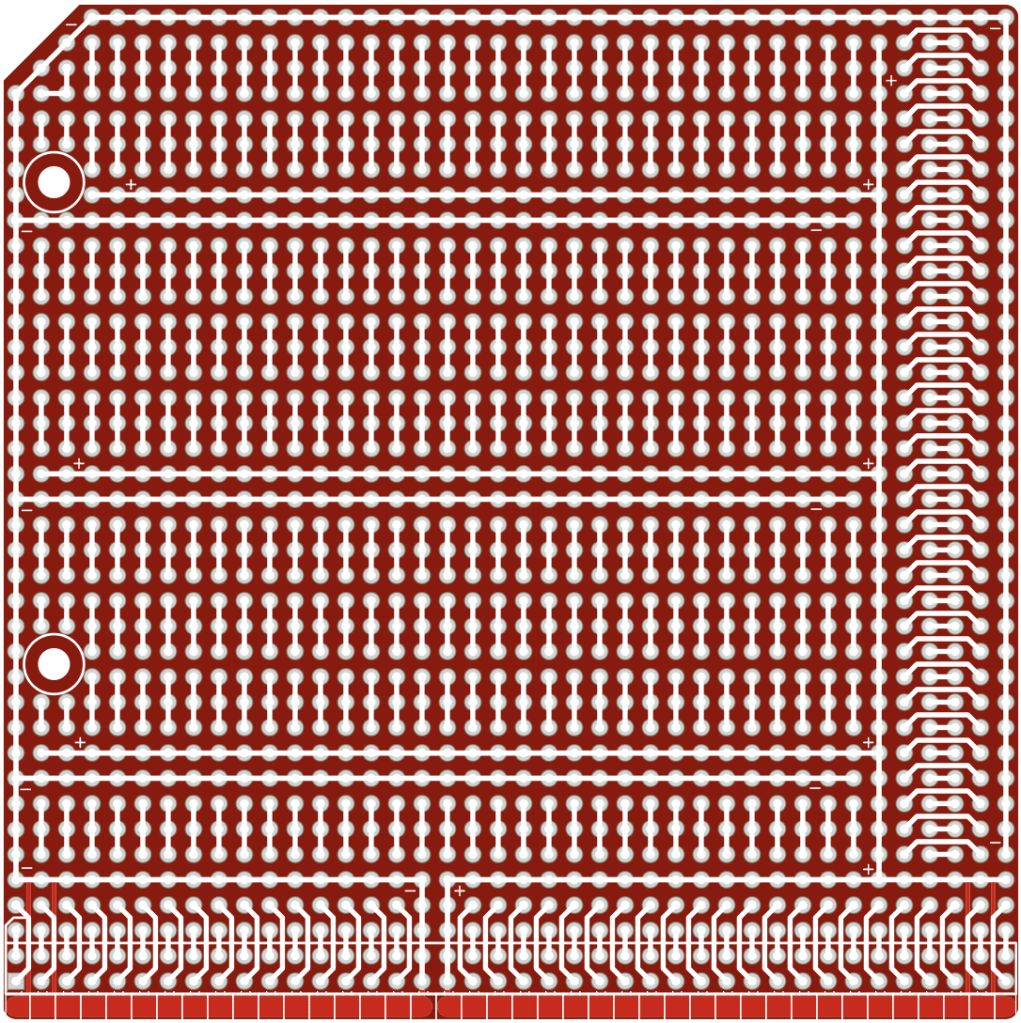

The illustration below shows the connections built into the PCB. These are designed to allow both narrow and wide dual-in-line ICs and also 0.1″ pitch connectors on the back (right) edge of the module.
Input/output port functions
| I/O Address | Read | Write |
| none | n/a | n/a |
Jumper options
| Jumper | Function |
| none | n/a |

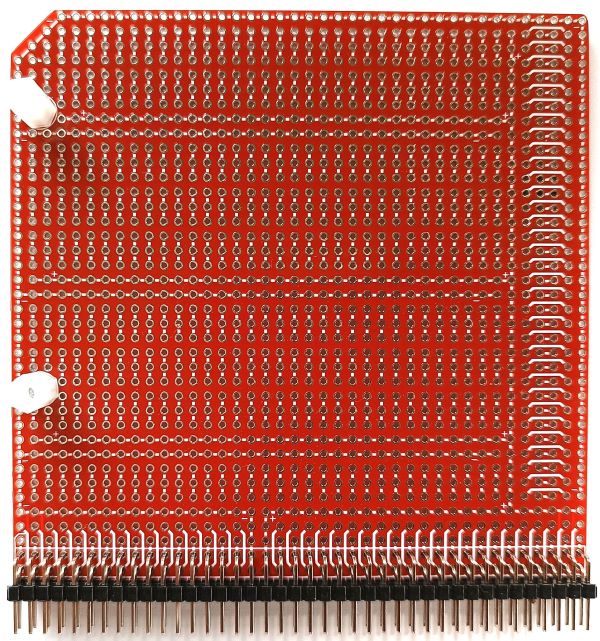

Assembly Guide
Below is the suggested order of assembly. A general guide to assembling circuit boards can be found here.
- Bus header P1
Make sure the pins are parallel to the PCB so that the board is vertical when it is fitted into a backplane socket - Fit the nylon spacers in the mounting holes
Compatibility
This module conforms fully to the RCBus specification v1.0 and thus supports: RCBus-2014, RCBus-Z80, RCBus-68xx, RCBus-9995.
The RCBus specification includes RCBus-2014 (both RC2014 standard 40-pin bus and RC2014 enhanced 60-pin bus) and also the full 80-pin RCBus. The 80-pin RCBus provides support for advanced Z80 features, such as the interrupt daisy-chain, as well as support for other processor families.
The table below indicates electrical compatibility with each backplane type (40, 60 and 80 pin)
| Backplane | ? | Compatibility notes |
| RCBus 80-pin |  | Fully supported |
| RCBus 60-pin (RC2014 enhanced) | | Limitations: Only 60-pin bus signals available |
| RCBus 40-pin (RC2014 standard) | | Limitations: Only 40-pin bus signals available |
Notes
- This product is designed for hobby use and is not suitable for industrial, commercial, or safety-critical applications.
- The product contains small parts and is not suitable for young children.
- RC2014 is a trademark of RFC2795 Ltd.
- RomWBW is copyright Wayne Warthen and has been provided free of charge with his permission.
- The Compact Flash interface circuit has been designed by Tadeusz Pycio and reproduced with his permission.
