SC113 is a modular backplane section designed for RC2014 and featuring:
- Input: Through-hole BP80 plug
- Cards: 6 x RC2014/80 pin sockets
- Output: Through-hole BP80 socket
A later design is now available: SC702
Documentation
- SC113 – Description (see user guide PDF)
- SC113 – Assembly Guide (see user guide PDF)
- SC113 – User Guide (see user guide PDF)
Downloads
- SC113 – Schematic v1.1 (PDF)
- SC113 – User Guide e1.1.1 (PDF)
- SC113 – 3D printed mounting rails at thingiverse.com
- SC113 – 3D printed parts at printables.com
Suppliers
| Kits | Website | From | Currency |
| Discontinued | |||
| PCBs | Website | From | Currency |
| Small Computers Direct | SCDirect | UK | GBP |
| Stephen C Cousins | Tindie | UK | USD |
| Small Computer Central | Lectronz | UK | Euro/USD |
| Assembled and Tested | Website | From | Currency |
| Not available | |||
| Components | |||
| See parts list |
Tindie does not collect VAT for EU countries
Lectronz does collect EU VAT for orders up to 150 EUR
Parts List
| Reference | Qty | Component |

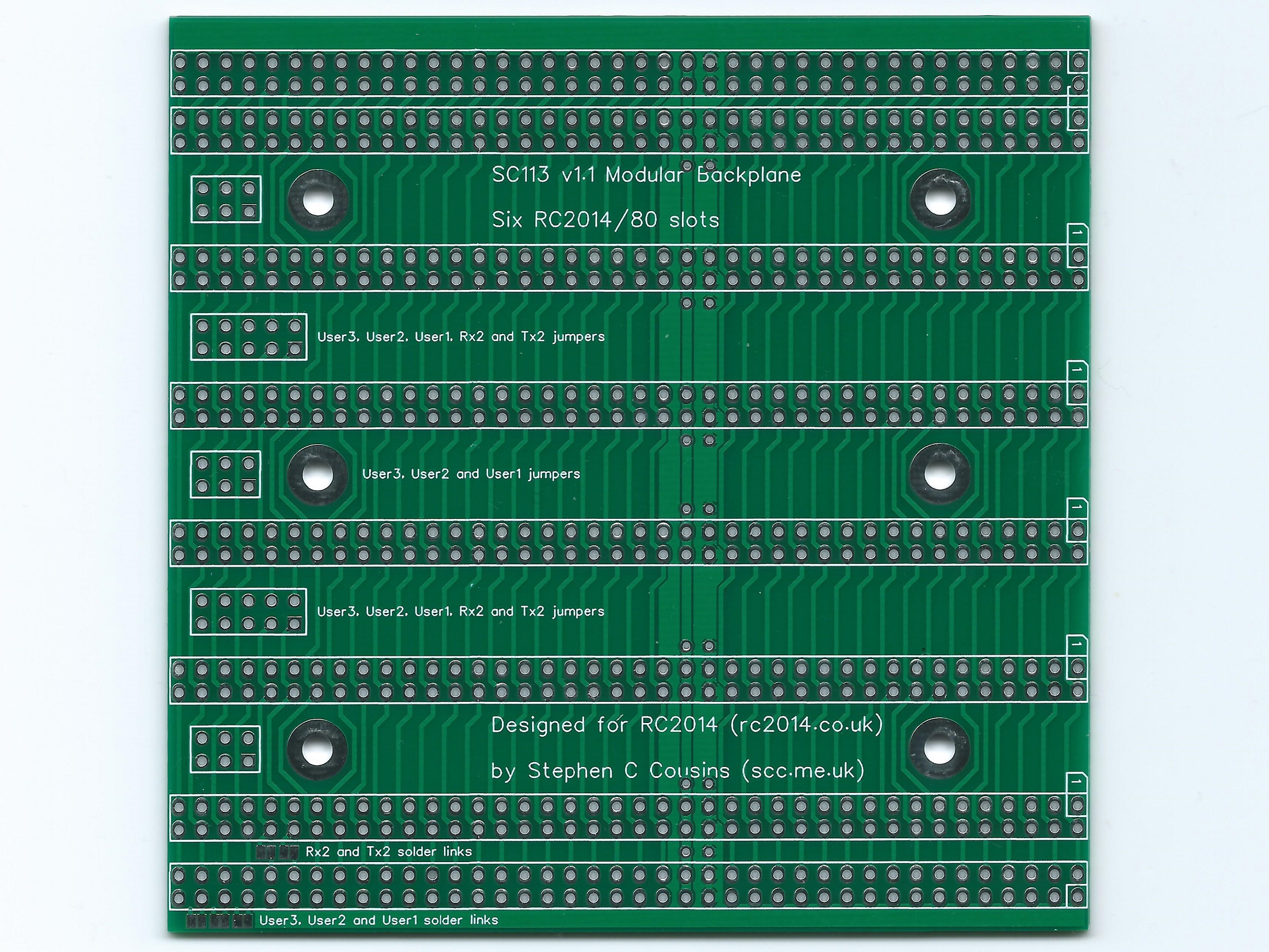

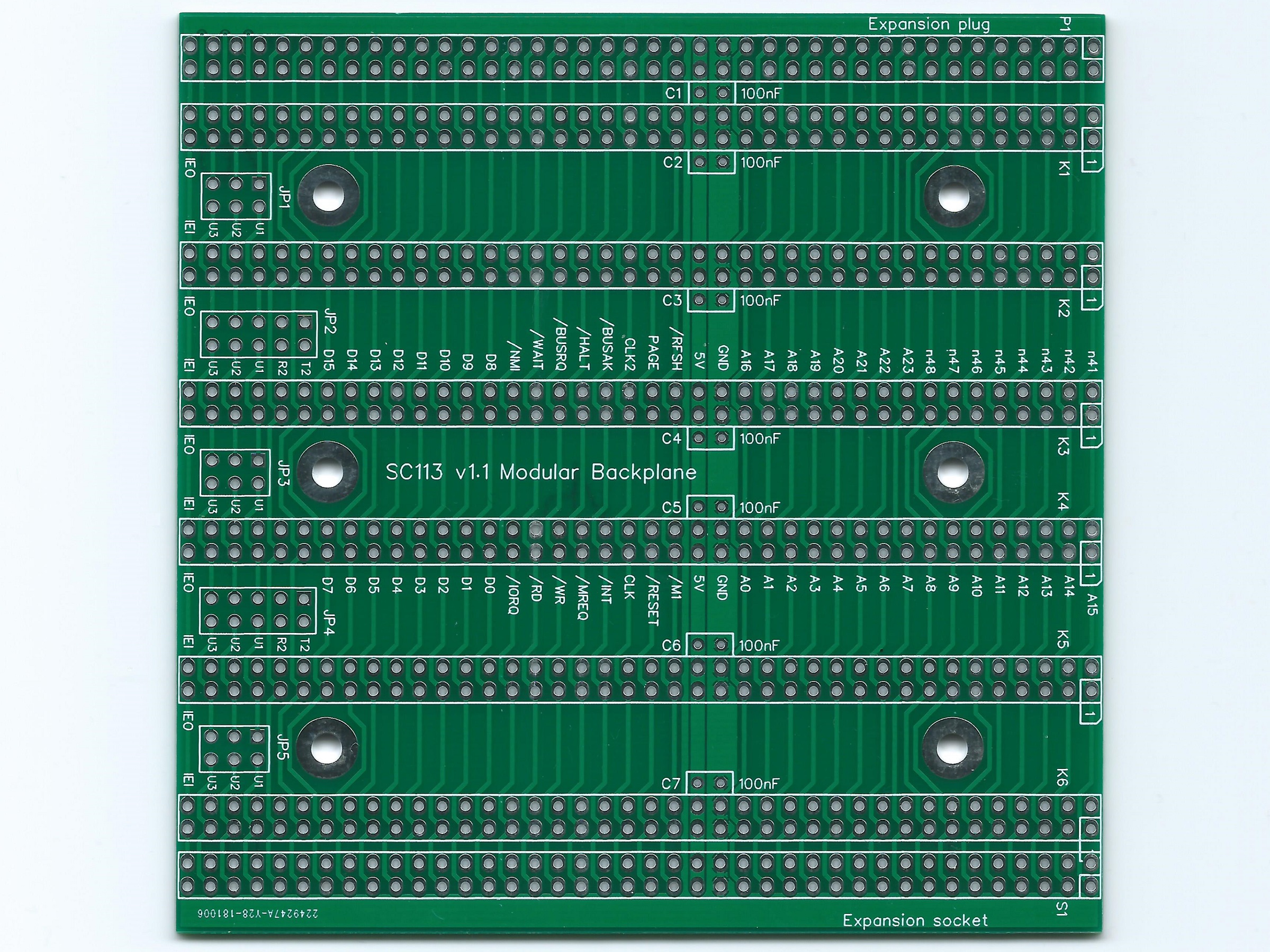

| PCB | 1 | SC113, v1.1, PCB |
| C1 to C7 | 7 | Capacitor, ceramic, 100 nF |
| JP1, JP3 and JP5 | 3 | Header, male, 2 x 3 pin, straight |
| JP2 and JP4 | 2 | Header, male, 2 x 5 pin, straight |
| JP1 to JP5 shunt | 19 | Jumper shunt |
| P1 | 1 | Header, male, 2 x 40 pin, angled |
| S1 | 1 | Header, female, 2 x 40 pin, angled |
| K1 to K6 | 6 | Header, female, 2 x 40 pin, straight |
Printed Circuit Board
| Supplier | Website | Ships from |
| Stephen C Cousins | Tindie | UK |
| pcb4diy | eBay | Germany |
| pcb4diy | pcb4diy.de | Germany |
Notes
- This design is made in accordance with the “designed for RC2014” labelling scheme.
- RC2014 is a trademark of RFC2795 Ltd.
- This product is designed for hobby use and is not suitable for industrial, commercial or safety-critical applications.
- The product contains small parts and is not suitable for young children.
