SC116 is a 3 slot backplane designed for the RC2014 bus.
A later version of this backplane is also available: SC723
Documentation
- SC116 – Assembly Guide (see user guide PDF)
- SC116 – User Guide (see user guide PDF)
- SC116 – Schematic r1.0.0 (PDF)
- SC116 – User Guide e1.0.1 (PDF)
- SC116 – Kit (Tindie) – discontinued (replaced with SC723)
- SC116 – PCB (Tindie)
Description

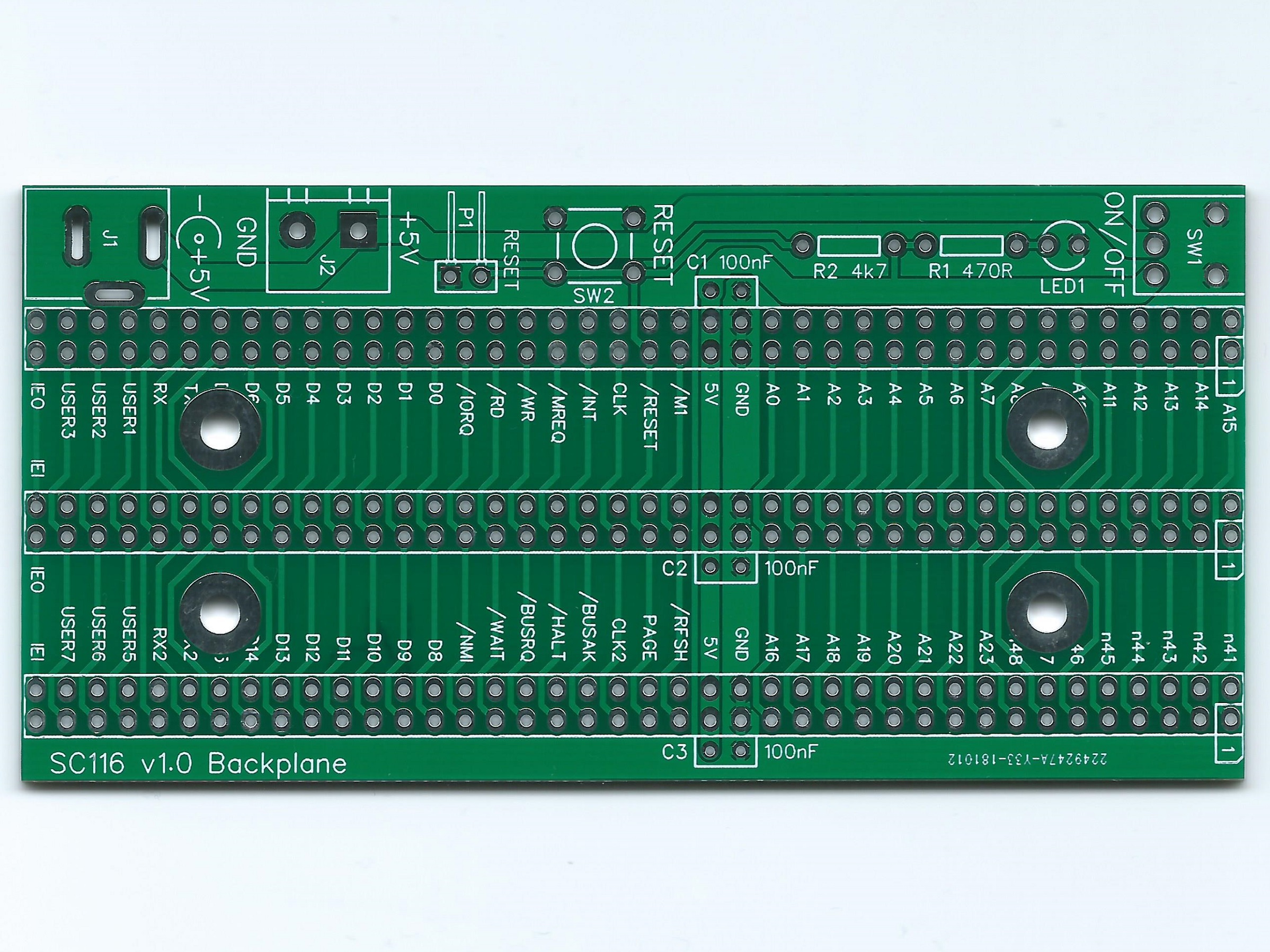

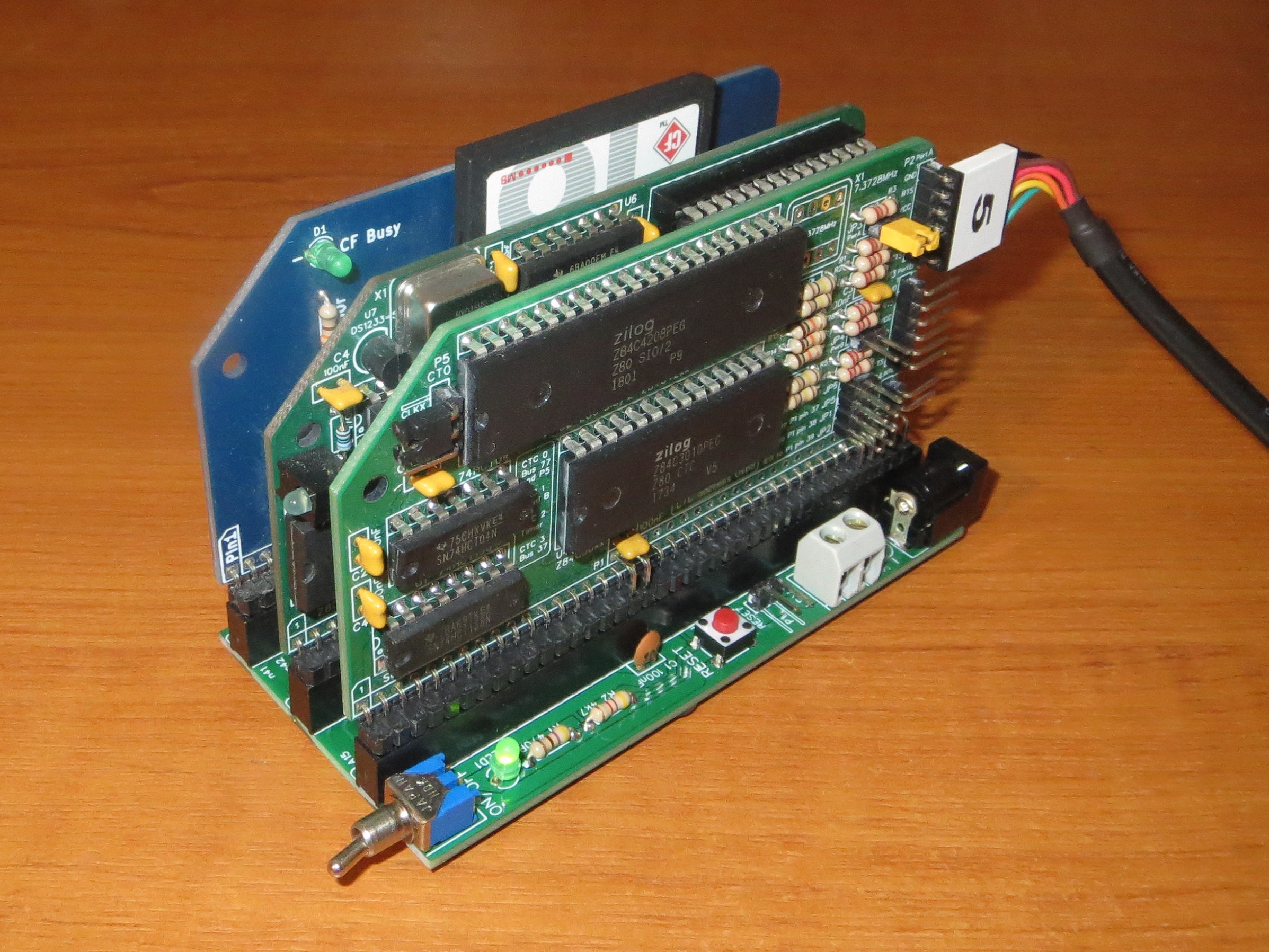

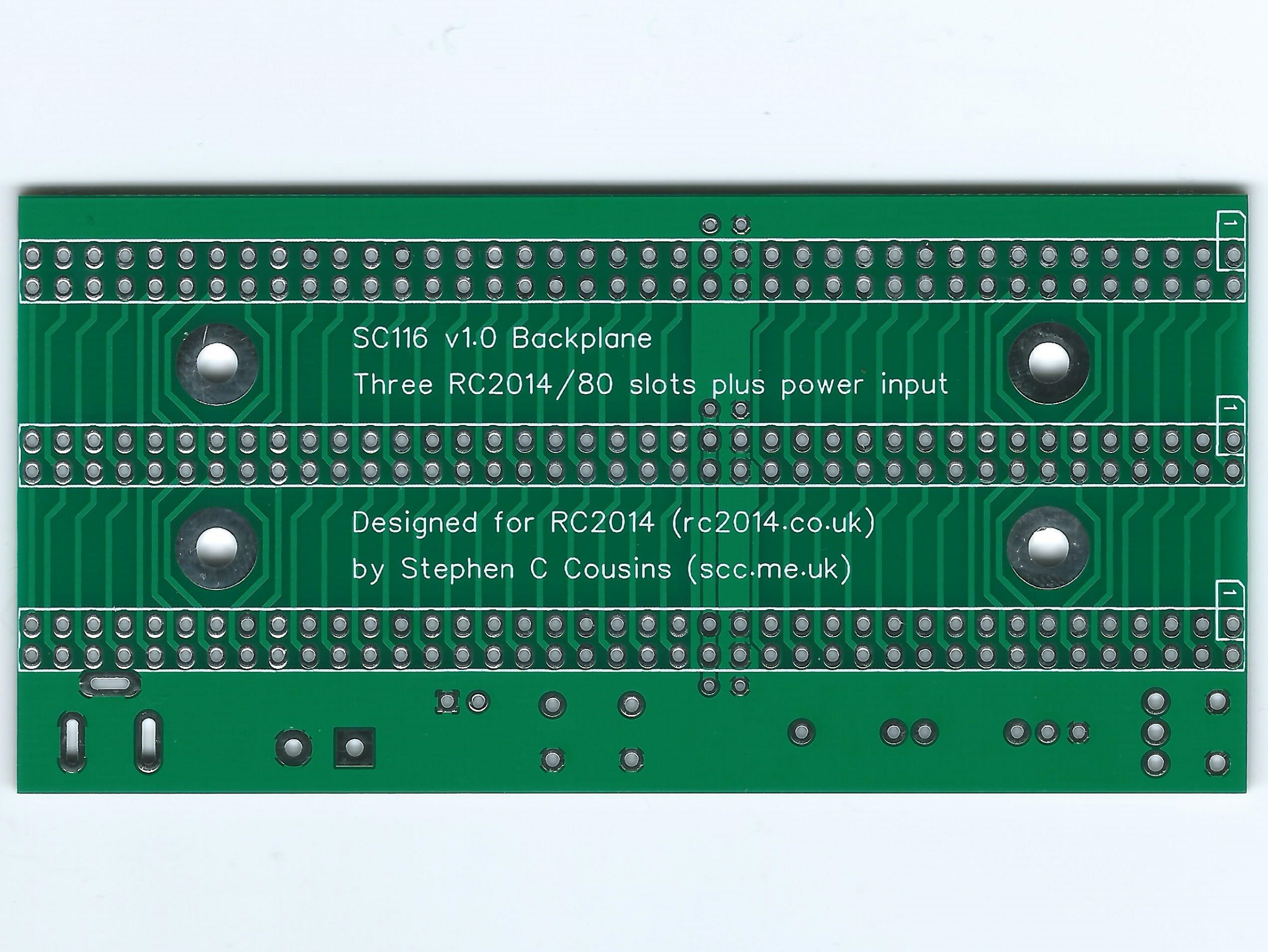

Why have a huge backplane when a minimal RC2014 system can be built with only a couple of modules? With three modules you can build a CP/M system.
This backplane is ideal for a minimal RC2014 system and lends itself to being used in a small enclosed system.
Features
- 3 x RC2014/80 pin module sockets
- Power supply input
- Very small size
Parts List
| Reference | Qty | Component |
| PCB | 1 | SC116, v1.0, PCB |
| C1 to C3 | 3 | Capacitor, ceramic, 100 nF |
| P1 | 1 | Header, male, 1 x 2 pin, angled |
| K1 to K3 | 3 | Header, female, 2 x 40 pin, straight |
| R1 | 1 | Resistor, 470R, 0.25W |
| R2 | 1 | Resistor, 4k7, 0.25W |
| LED1 | 1 | LED, green, 3 mm |
| SW1 | 1 | Switch, toggle, sub-miniature, SPDT |
| SW2 | 1 | Switch, tactile button |
| J1 | 1 | Socket, power, barrel, 2.1mm |
| J2 | 1 | Screw terminal, 2 way, 5.08mm pitch |
Printed Circuit Board
| Supplier | Website | Ships from |
| Stephen C Cousins | Tindie | UK |
| pcb4diy | eBay | Germany |
| pcb4diy | pcb4diy.de | Germany |
Notes
- This design is made in accordance with the “designed for RC2014” labelling scheme.
- RC2014 is a trademark of RFC2795 Ltd.
- This product is designed for hobby use and is not suitable for industrial, commercial or safety-critical applications.
- The product contains small parts and is not suitable for young children.
