Getting Started

You are probably reading this because the idea of making a computer with retro technology sounds fun. Perhaps you are my age and have fond memories of learning BASIC on an early home computer, or perhaps you’re a product of the mobile phone era and want to experience the early days of micro-electronics.

This article discusses some of the options available.

What does “retro technology” mean?

There are many views on what is retro, and there are many websites out there which explore this topic. This website takes a fairly narrow view of the topic and is by no means a definitive guide to “retro technology”. For me, it is not about genuine commercial computers of that era, but about building and playing with old technology.

In this context, “retro technology” means components, techniques, and software from the late 70s, the 80s, and perhaps the 90s.

The questions to ask yourself

Before embarking on this journey it is a good idea to consider what your motives are and what you want to achieve.

Are you more interested in the electronics or the software?

Do you want to use what is on offer or create your own?

What skill sets do you already have and what new skills do you want to learn?

Do you want to be part of a vibrant community of like-minded folk? (I was tempted to say “nerds” or “geeks”, but the truth hurts!)

Building the electronics

There are ways to buy assembled and tested retro electronics, but here we concentrate on building your own.

The first skill required is soldering. My view is that retro electronics should generally use through-hole components with a pitch of at least 0.1 inches (2.54 mm). This is authentic late 70s and early 80s, and makes soldering relatively easy.

Assembly tools

You can spend a fortune on tools, and you will get as many different views on what you should use as there are tools to buy.

A good set of small hand tools is worth its weight in gold.

Also, get a cheap set of heavy-duty hand tools so you don’t abuse your nice small set.

A magnifying glass becomes essential with age 😦

Some people like head mounted magnifiers.

The choice of soldering iron is perhaps the most open to debate. Some use very cheap irons, but I feel a modest cost, temperature controlled iron makes sense. A fine tip, say around 1 mm, is good.

A hand-held solder sucker works well for me when solder needs to be removed. Anything fancier is excessive. I never got on with solder braid.

Test equipment

When you make your own electronics and things don’t work, you need to figure out why.

When building a tried and tested design, the most likely cause is probably faulty assembly. Visual inspection is the best tool you have for assembly problems.

Sometimes, however, you really do need some equipment.

I wouldn’t advise building even a well designed kit without at least a multi-meter.

A very basic meter is all that is required.

Logic probes are quick and easy to use, and well worth having.

Again, a low-cost version is adequate.

An oscilloscope is a great tool but they can get rather expensive. Unless you have quite a good one they can be of limited value with computer electronics. A computer based oscilloscope can be low cost and quite capable.

A logic analyser sounds like a great idea and can be very good at tracing some kinds of software issues. However, they are fiddly and time-consuming to connect to the hardware.

My view is that expensive test equipment is over-rated for retro computing. The best tool you have is your brain. Think first before spending time digging into the detail.

I design and build my own hardware and only have basic test equipment, namely:

  • A low cost multi-meter
  • A very very poor hand-held oscilloscope which is really only good up to audio frequencies, so is of little use with retro computer technology. It has to be a desperate situation to even consider using it.

One day I’ll get a logic probe. The appeal here is that basic checks are so quick and easy. I also fancy a low-cost logic analyser which I think will help with producing good quality documentation.

Development tools

We are fortunate to have modern computers available. These are great tools for retro enthusiasts. They can act as a terminal, a vast library of information (via the internet), and as a software development aid.

The early pioneers of home computers would have probably sold their grandmas for the sort of development tools a modern computer provides.

So, what to do?

If you want to design and build your own system from scratch, you’ve probably already stopped reading the article! So, let’s assume you want to at least start by building one of the designs or kits already available.

There are many designs available on the internet, but here we will just consider some of those that can be purchased as kits. I follow two systems which are available as kits and are also open designs, which encourage third parties to make and sell compatible parts.


Both of these systems can be supplied with my own Small Computer Monitor and also a version of BASIC. Both can either be supplied with or be expanded to run, CP/M.

The RC2014 system is the most widely established with many third-party compatible designs. The Z50Bus, which is the expansion bus for the LiNC80 SBC1, is a more recent introduction which I rather like.

Both of these systems take the modular construction approach, making them flexible and expandable. This also means you can start small and build up as required.

If you have had lots of experience building electronics, then any of the options offered for these systems should be fine. However, if you just want to start small or do not feel confident about tackling one of the larger projects, I recommend the following approach.

Disclaimer: I’m about to recommend some of my own designs.

After observing the experiences that some have had building RC2014 Pro systems, I decided that a simpler starting point was desirable. I, therefore, designed these two products.

SC114, Z80 Motherboard / SBC for RC2014
SC118, Z80 Processor / SBC for Z50Bus

Both of these designs can be used in a modest way, on their own, as a Single Board Computer (SBC), but can also be easily expanded to run CP/M and more.

The official entry-level products for RC2014 and Z50Bus are illustrated below.

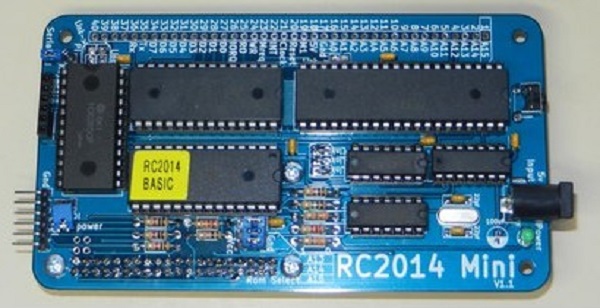

R2014 Mini

The RC2014 Mini is a similar size construction project to the SC114 (Z80 Motherboard / SBC) but does not expand so cleanly.

RC2014 Classic

The RC2014 Classic is a modular and expandable system but is a more complex construction project than SC114 (Z80 Motherboard / SBC).


The LiNC80 SBC is a much more sophisticated product than SC118 (Z80 Processor / SBC). However, SC118 is very expandable. There are a few areas the LiNC80 SBC1 scores though, as the SBC design enables tighter integration for some expansion options.

A few other points to consider:

  • Single board design is not only a simpler construction project but is inherently more reliable than a system with lots of low cost connectors, as found on the RC2014 and Z50Bus cards and backplanes.
  • A modular system is generally more flexible and expandable. If you want to play with the hardware, a modular system is more fun.
  • The LiNC80 SBC1 is nice as it provides the advantages of an SBC for the core functions while still offering the benefits of an expandable modular system.

I like the idea of starting with a small build which has a good chance of working the first time. Not only does this usually get you up and running with only a couple of hours of construction, it also gives you a working system to build on. It is no fun having an expensive kit with lots of boards just sitting doing nothing and you having no idea why.
