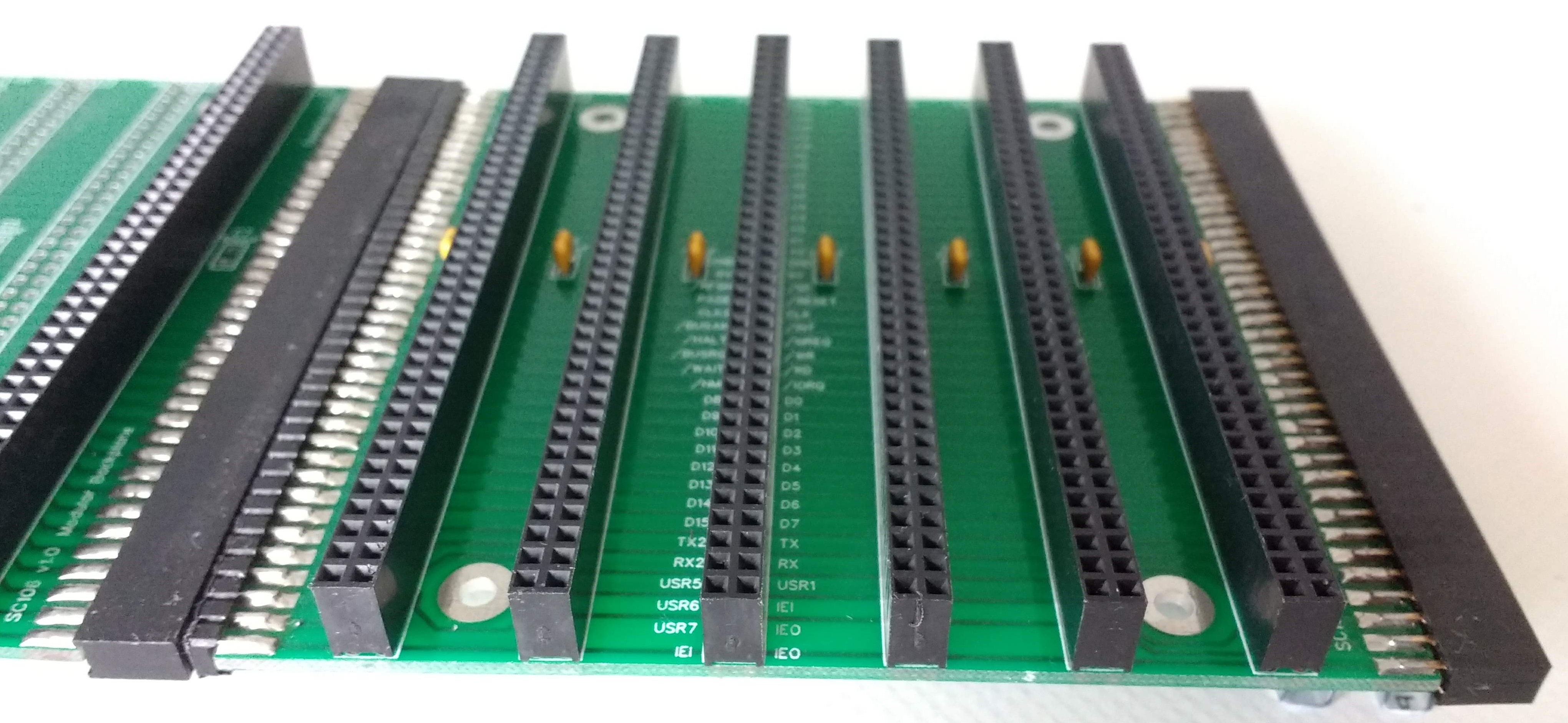

SC107 is a modular backplane section designed for RC2014 and featuring:

• Input: Edge mounted BP80 plug
• Cards: 6 x RC2014/80 pin sockets
• Output: Edge mounted BP80 socket
• Pins 37 and 38 form an interrupt daisy chain

Documentation

• SC107 – Description (see user guide PDF)
• SC107 – Assembly Guide (see user guide PDF)
• SC107 – User Guide (see user guide PDF)

Downloads

• SC107 – Schematic v1.0 (PDF)
• SC107 – User Guide e1.0.0 (PDF)

Suppliers

• SC107 – Kit, not currently available
• SC107 – PCB, not currently available

Parts List

Reference	Qty	Component
PCB	1	SC107, v1.0, PCB
C1 to C7	7	Capacitor, ceramic, 100 nF
EP	1	Header, male, 2 x 40 pin, straight
ES	1	Header, female, 2 x 40 pin, straight
P1 to P6	6	Header, female, 2 x 40 pin, straight

Printed Circuit Board

Part number	Notes
EasyEDA: SC107	PCB design files

Notes

• This product is designed for hobby use and is not suitable for industrial, commercial, or safety-critical applications.
• The product contains small parts and is not suitable for young children.
• RC2014 is a trademark of RFC2795 Ltd.
• RomWBW is copyright Wayne Warthen and has been provided free of charge with his permission.
• The Compact Flash interface circuit has been designed by Tadeusz Pycio and reproduced with his permission.
