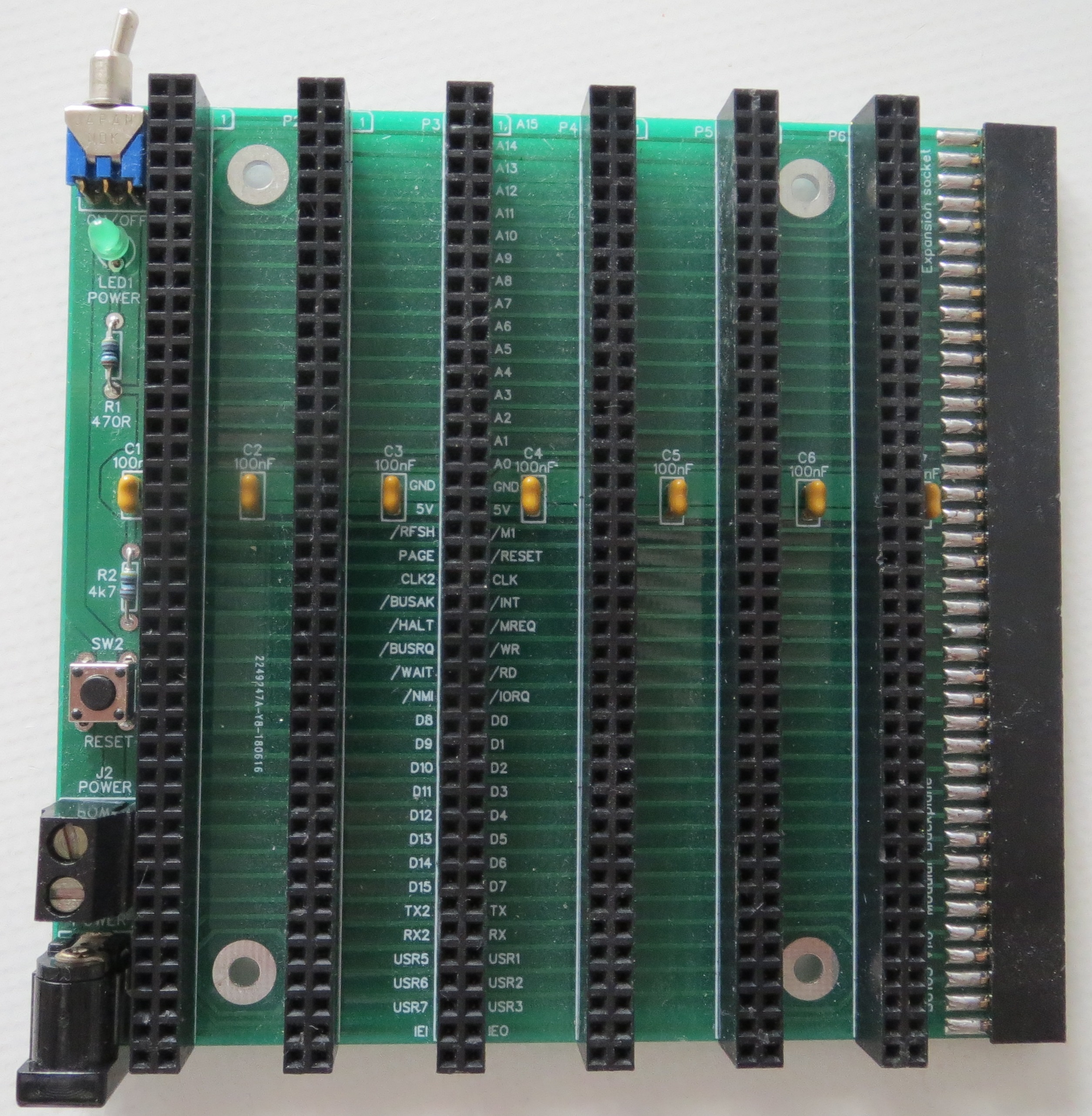

SC105 is a modular backplane section designed for RC2014 and featuring:
- Input: Power supply
- Cards: 6 x RC2014/80 pin sockets
- Output: Edge mounted BP80 socket
Documentation
- SC105 – Description (see user guide PDF)
- SC105 – Assembly Guide (see user guide PDF)
- SC105 – User Guide (see user guide PDF)
Downloads
Suppliers
- SC105 – Kit, not currently available
- SC105 – PCB, not currently available
Parts List
| Reference | Qty | Component |
| PCB | 1 | SC105, v1.0, PCB |
| C1 to C7 | 7 | Capacitor, ceramic, 100 nF |
| S1 | 1 | Header, female, 2 x 40 pin, straight |
| P1 to P6 | 6 | Header, female, 2 x 40 pin, straight |
| R1 | 1 | Resistor, 470R, 0.25W |
| R2 | 1 | Resistor, 4k7, 0.25W |
| LED1 | 1 | LED, green, 3 mm |
| SW1 | 1 | Switch, toggle, sub-miniature, SPDT |
| SW2 | 1 | Switch, tactile button |
| J1 | 1 | Socket, power, barrel, 2.1mm |
| J2 | 1 | Screw terminal, 2 way, 5.08mm pitch |
Printed Circuit Board
| Part number | Notes |
| EasyEDA: SC105 | PCB design files |
Notes
- This product is designed for hobby use and is not suitable for industrial, commercial, or safety-critical applications.
- The product contains small parts and is not suitable for young children.
- RC2014 is a trademark of RFC2795 Ltd.
- RomWBW is copyright Wayne Warthen and has been provided free of charge with his permission.
- The Compact Flash interface circuit has been designed by Tadeusz Pycio and reproduced with his permission.
