Components, Connectors

Barrel socket, 2.1 mm

Screw terminal, 2-way, 5 mm pin spacing

Header, male, 2.54 mm spacing

Low cost header pins. Shorter lengths can easily be cut from these parts with a pair of wire cutters, so there is no need to purchase shorter lengths. These parts are therefore listed for all lengths of header pins.

1 row x 40 pin, right angled, A

Type A, usually used for the bus header of 40-pin modules, general headers and jumpers.

1 row x 40 pin, right angled, B

Type B, often called ‘reversed’. The profile matches the 2 row x 40 pin angled header.

1 row x 40 pin, straight pins

2 row x 40 pin, right angled

2 row x 40 pin, straight pins

Header, female, 2.54 mm spacing

1 row x 6 pin, right angled

1 row x 6 pin, straight

1 row x 40 pin, right angled

1 row x 40 pin, straight

2 row x 40 pin, right angled

2 row x 40 pin, straight

Box headers

2 row x 10 pin, right angled

2 row x 13 pin, right angled

2 row x 20 pin, right angled

2 row x 20 pin, straight

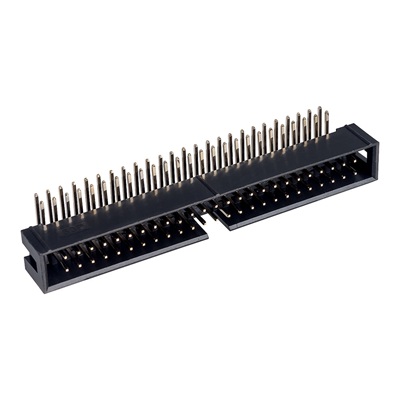

2 row x 25 pin, right angled

IC sockets

IC socket, DIP, 8-pin, 0.3″

IC socket, DIP, 14-pin, 0.3″

IC socket, DIP, 16-pin, 0.3″

IC socket, DIP, 18-pin, 0.3″

IC socket, DIP, 20-pin, 0.3″

IC socket, DIP, 24-pin, 0.6″

  • Farnell: ?
  • Mouser: ?
  • RS: ?

IC socket, DIP, 28-pin, 0.3″

IC socket, DIP, 28-pin, 0.6″

IC socket, DIP, 32-pin, 0.6″

IC socket, DIP, 40-pin, 0.6″

IC socket, DIP, 68-pin
